Background
The J-10 fighter jet, nicknamed 'Vigorous Dragon”, is a domestically developed high-performance, multi-role, all-weather third-generation fighter aircraft. It boasts high reliability, survivability, and maneuverability, with a large combat radius, short takeoff and landing distances, strong attack capabilities, and overall combat effectiveness reaching advanced international levels among similar fighter jets.
Introduction

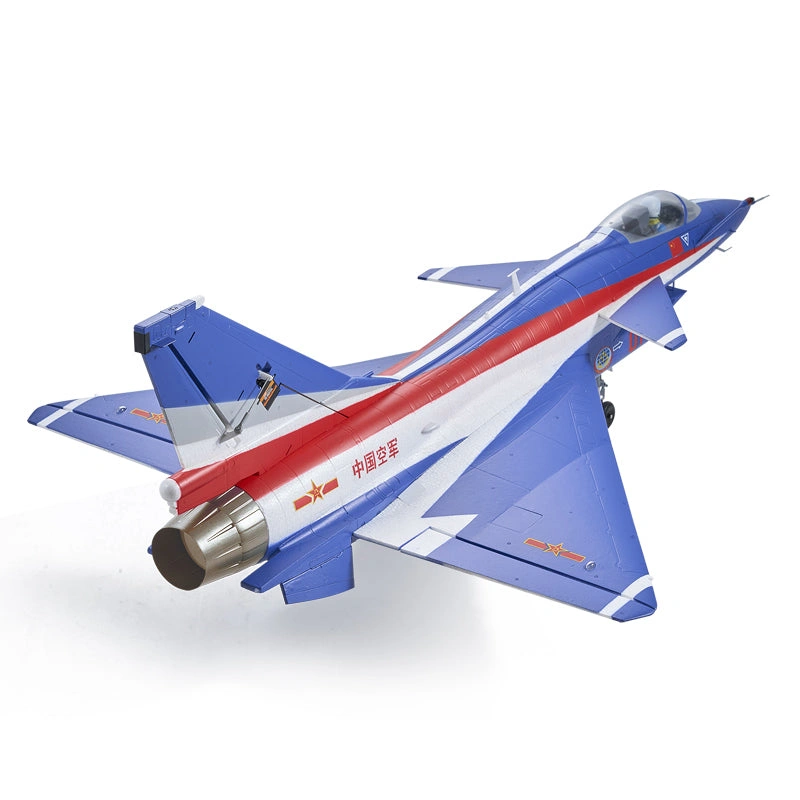

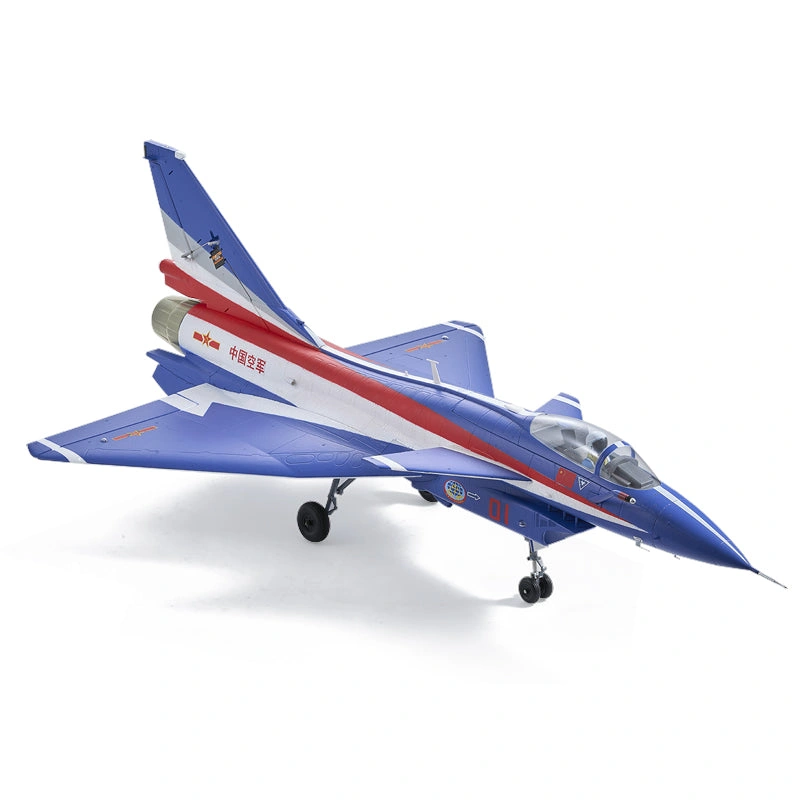

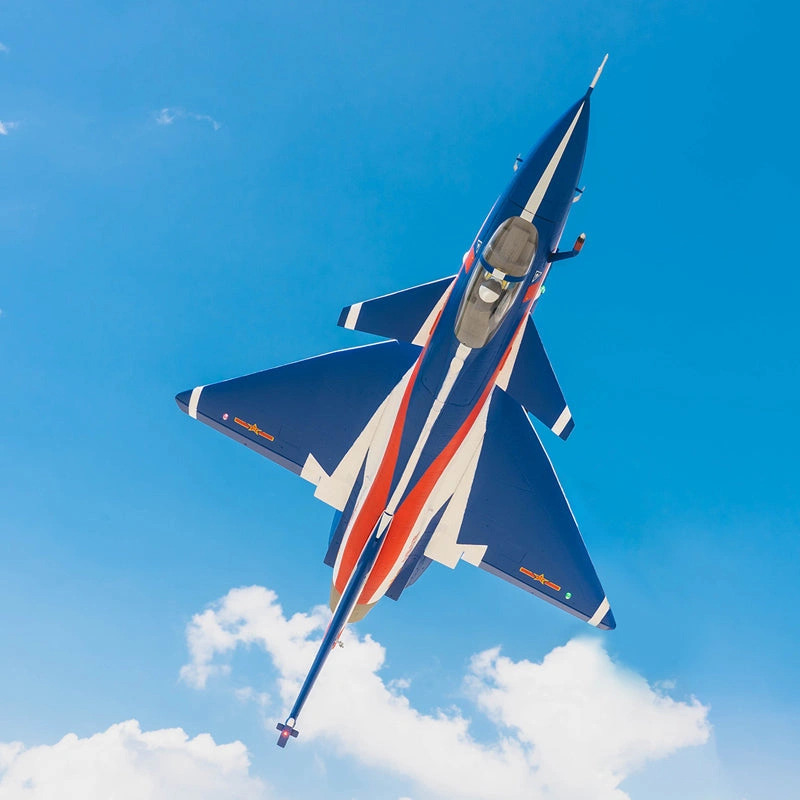

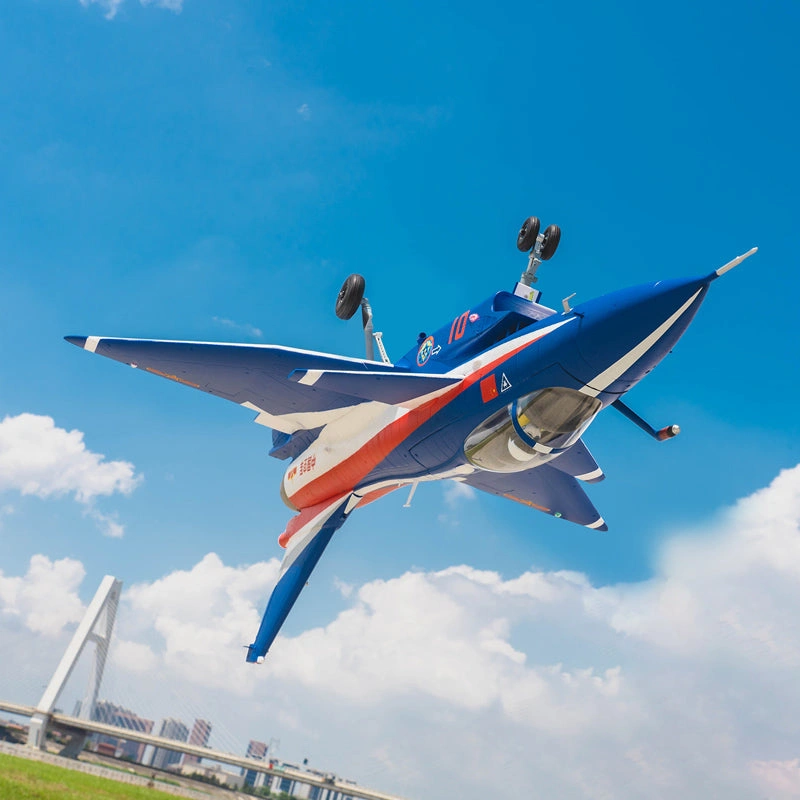

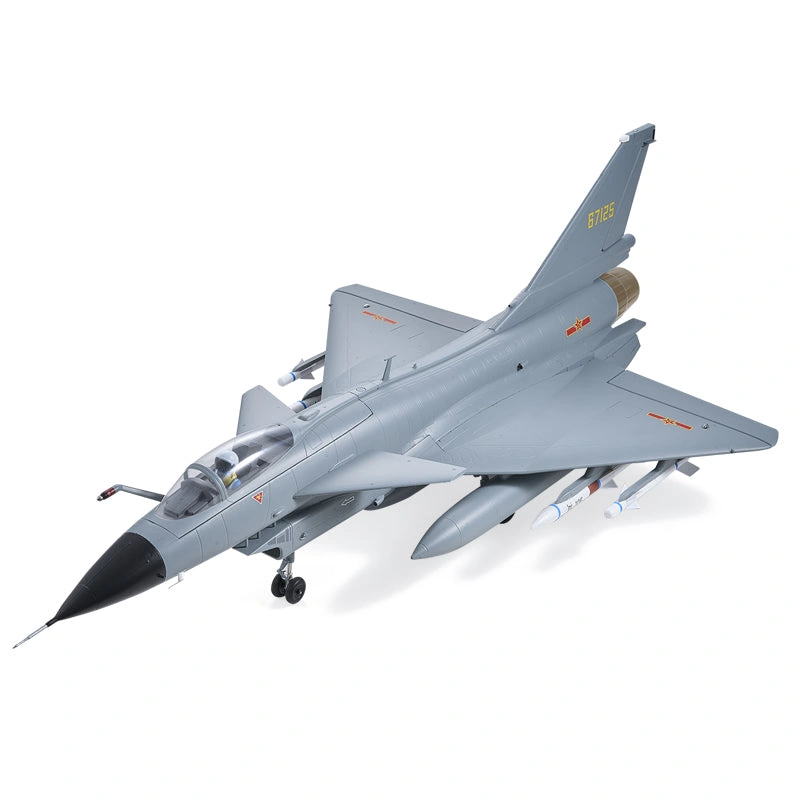

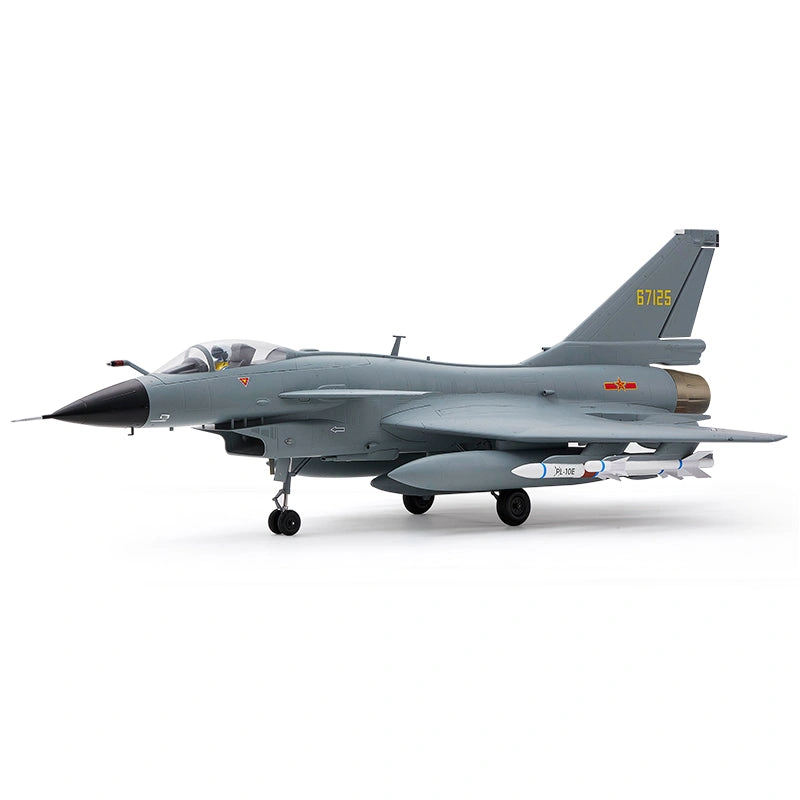

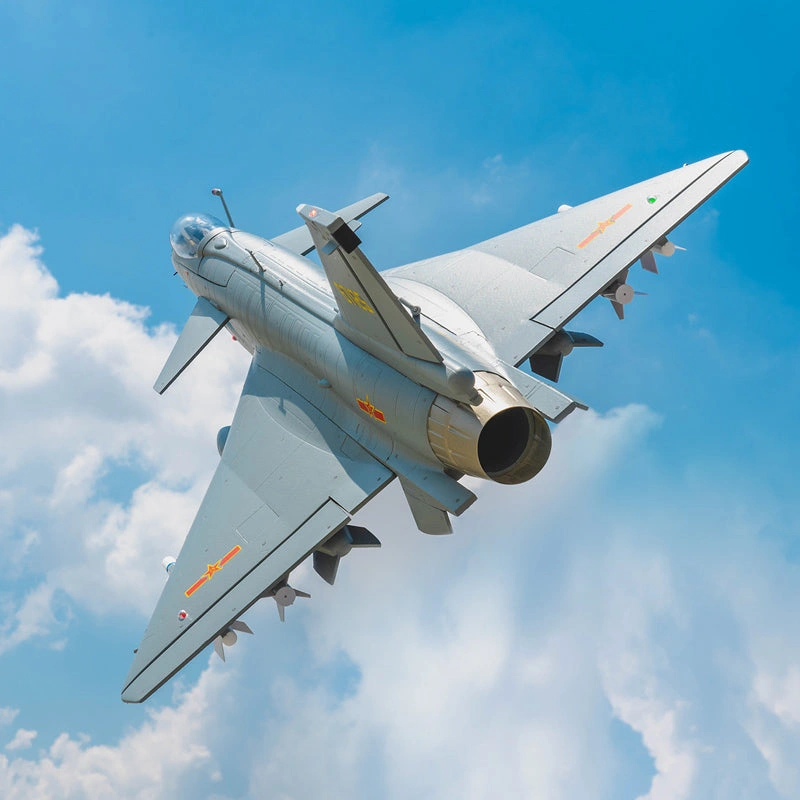

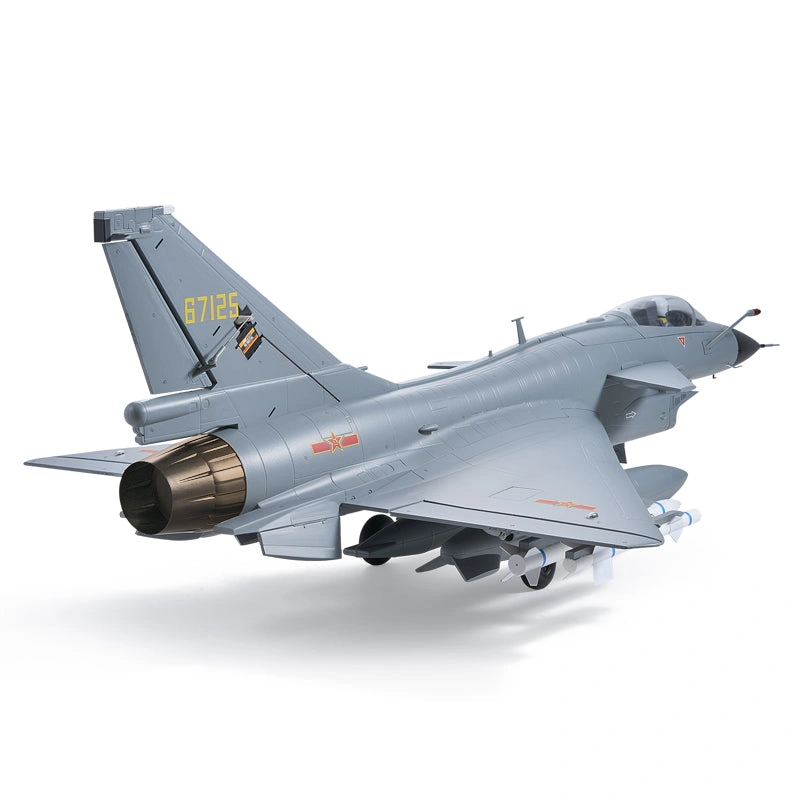

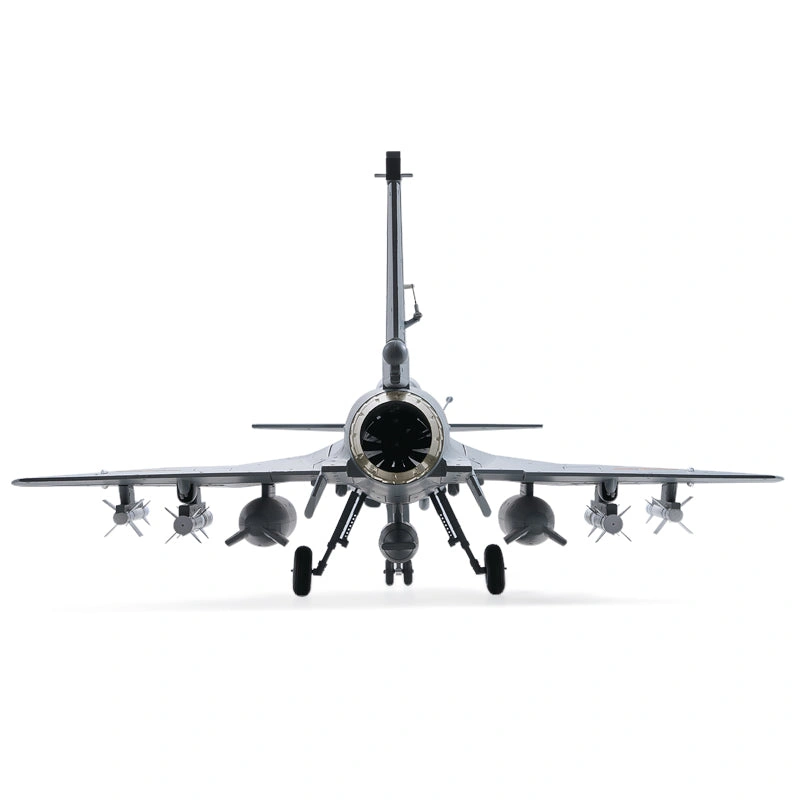

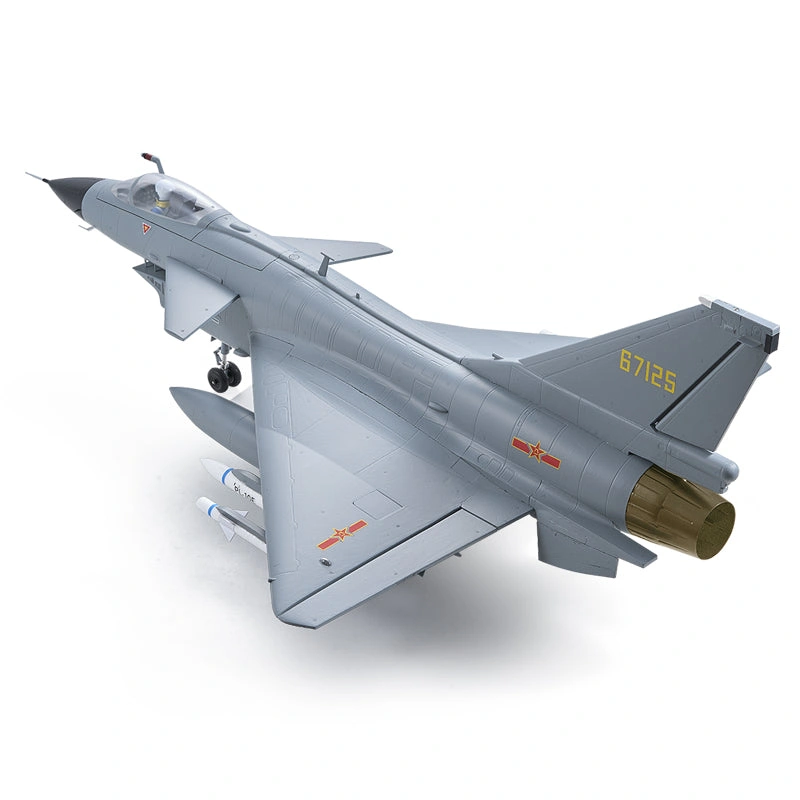

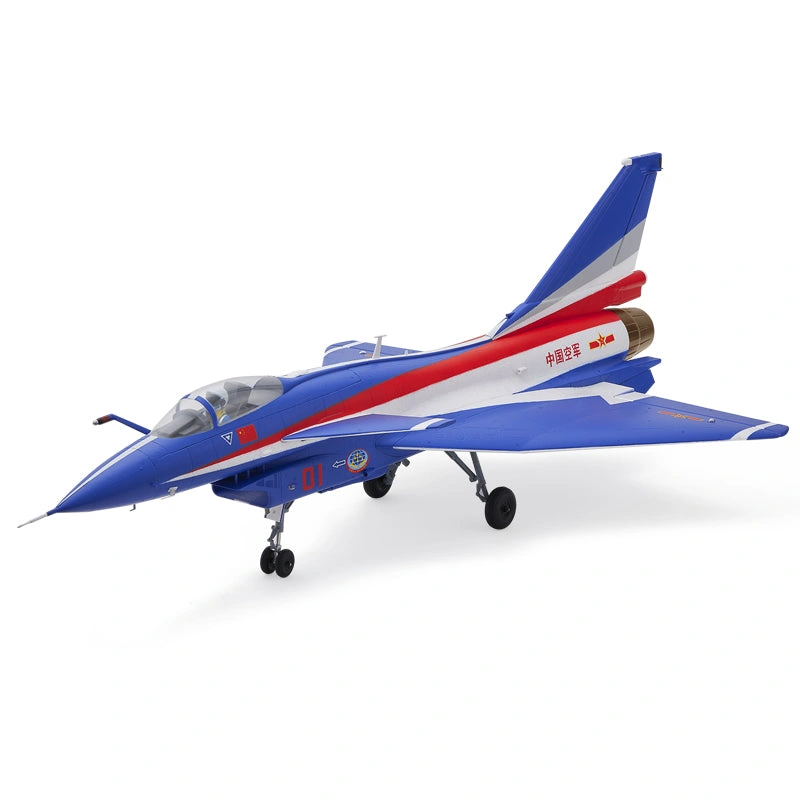

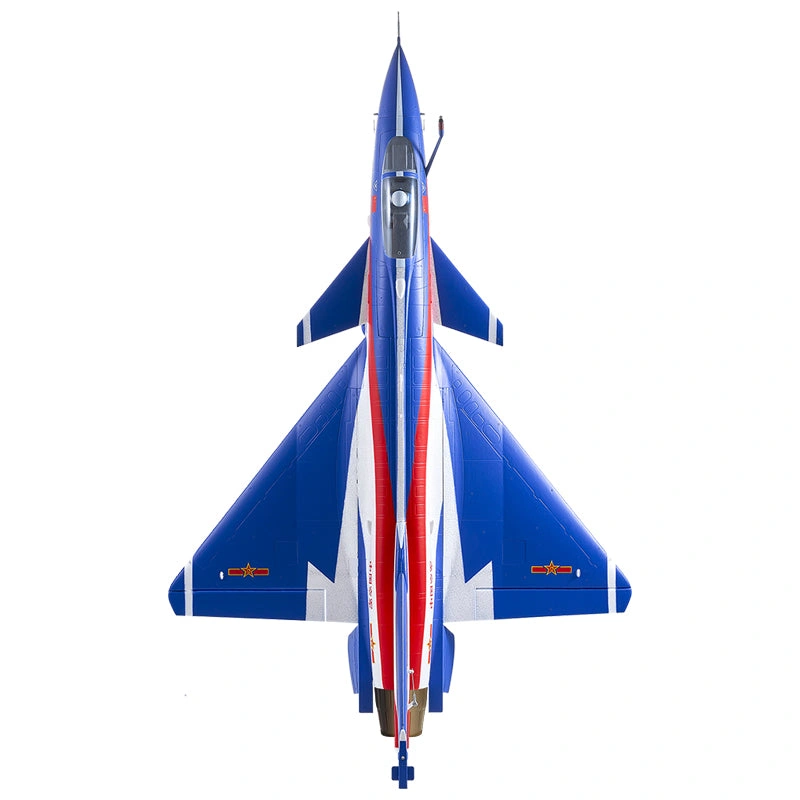

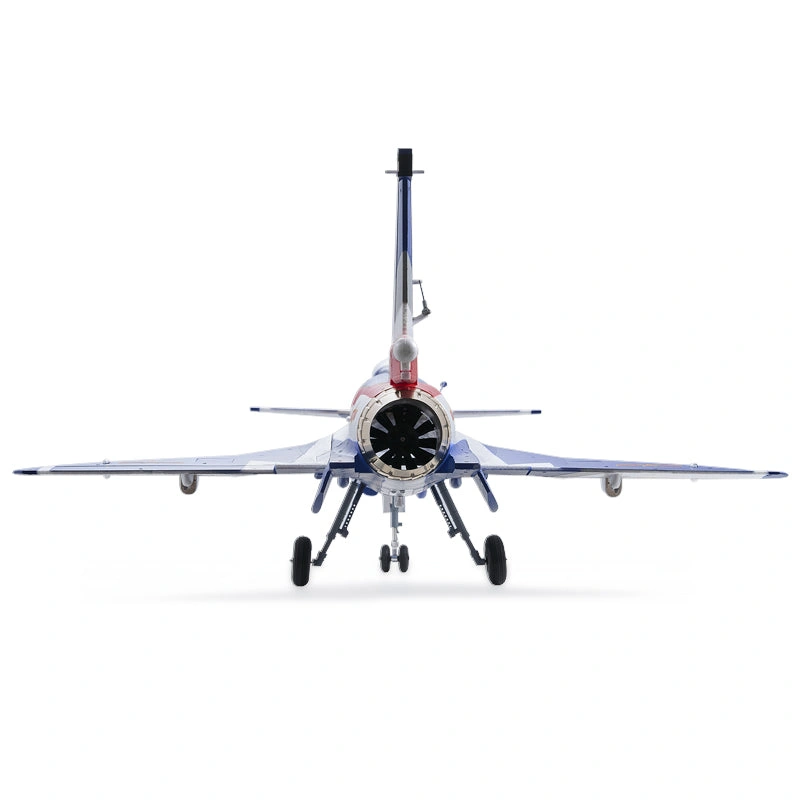

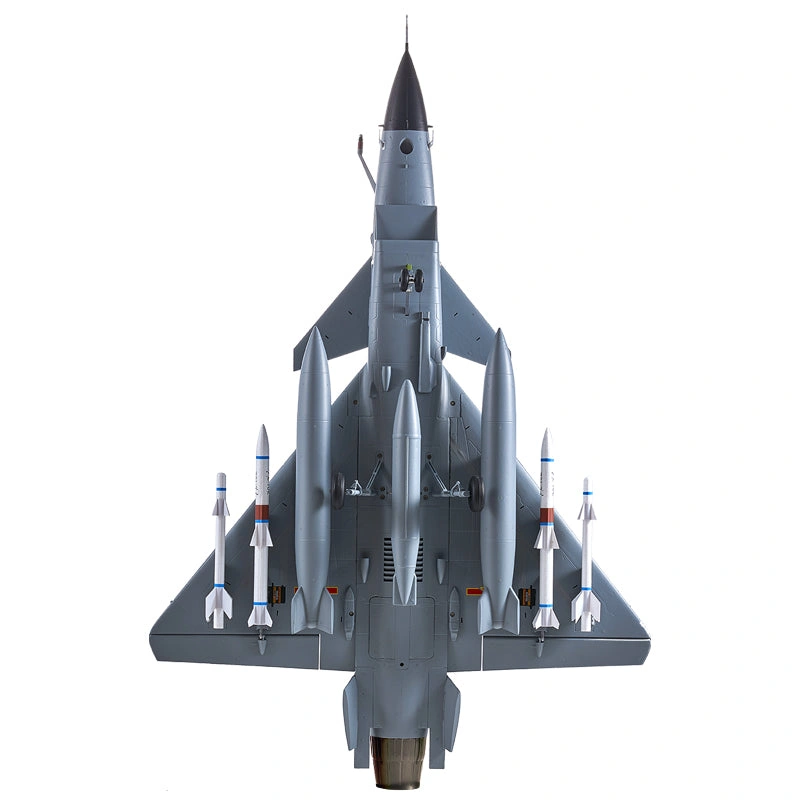

The J-10 EDF Jet features a unique delta wing and canard design for exceptional high-speed handling and also agile low-speed maneuverability. Using common 4S batteries, it is powered by a 64mm ducted fan with a brushless motor and a 40A ESC which helps to replicate the sound of a fighter jet. High-fidelity details include detachable weapon sets, an air refueling probe, navigation lights, and CNC-machined landing gear. Made from EPO 40 foam, it offers impact resistance and a water-resistant paint finish. The J-10 EDF jet is easy to assemble. Experienced modelers can complete assembly in about thirty minutes. Optional paint schemes are also available.
In The Box
(1) 64mm J-10 EDF PNP
(2) 40A ESC with Reverse Thrust Function (installed)
(3) 2840 KV3150 brushless motor (installed)
(4) 64mm 11-blade ducted fan (installed)
(5) 4x 9g Digital Servo (installed)
(6) Product Manual
Needed to Complete
(1) 6 Channel Transmitter and Receiver
(2) 14.8V 2200-2600mAh 25c Li-Po battery with XT60 connector
(3) LiPo Battery Charger
Notes to Buyers

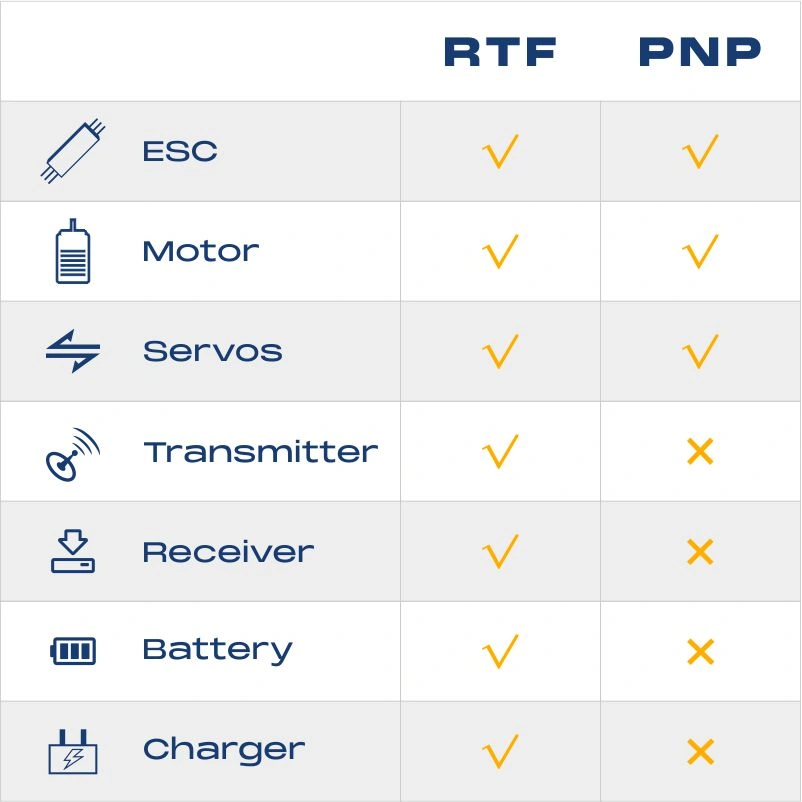

① RTF (Ready to Fly) airplanes come with everything you need to fly in the box. A transmitter, receiver, battery, charger, and all other required electronics are included and pre-installed from the factory.
② PNP (Plug-and-Play) airplanes include the ESC, motor, and servos all pre-installed from the factory. Transmitter, receiver, battery, and charger are not included.
③ EPO foam and cockpits can bubble or deform in high heat. To prevent this, avoid leaving them in direct sunlight when not in use.
④ The vertical tail and canard need to be secured with EPO glue.
⑤ A T6 Torx screwdriver is needed to install the front landing gear.
Specification

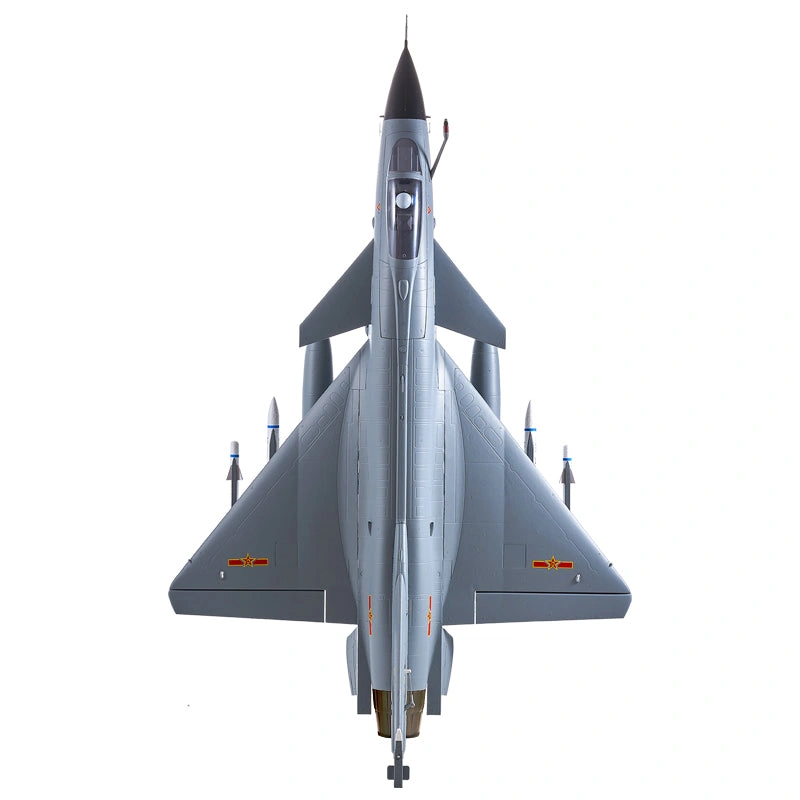

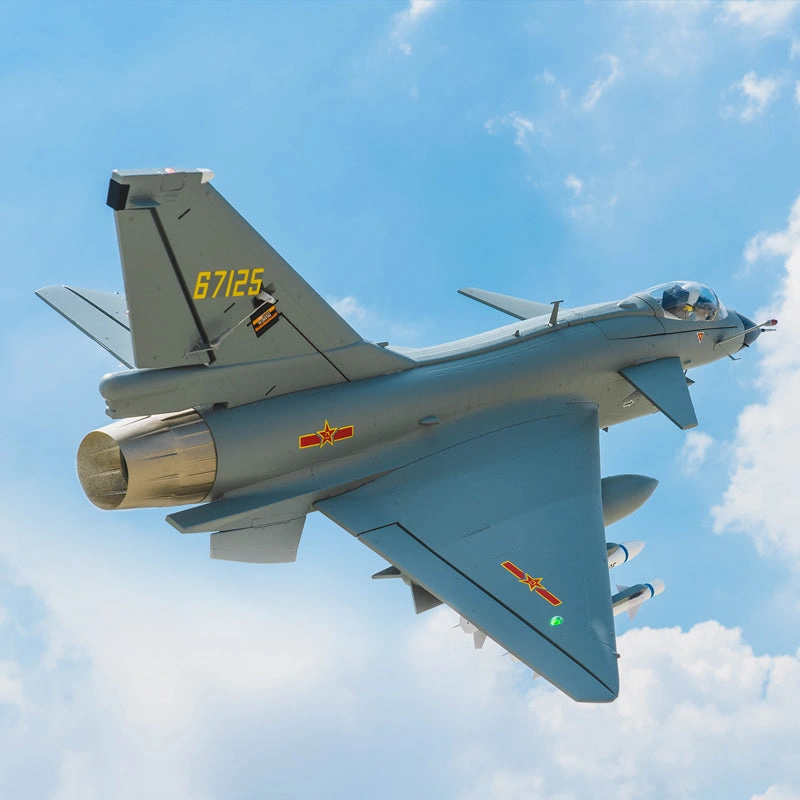

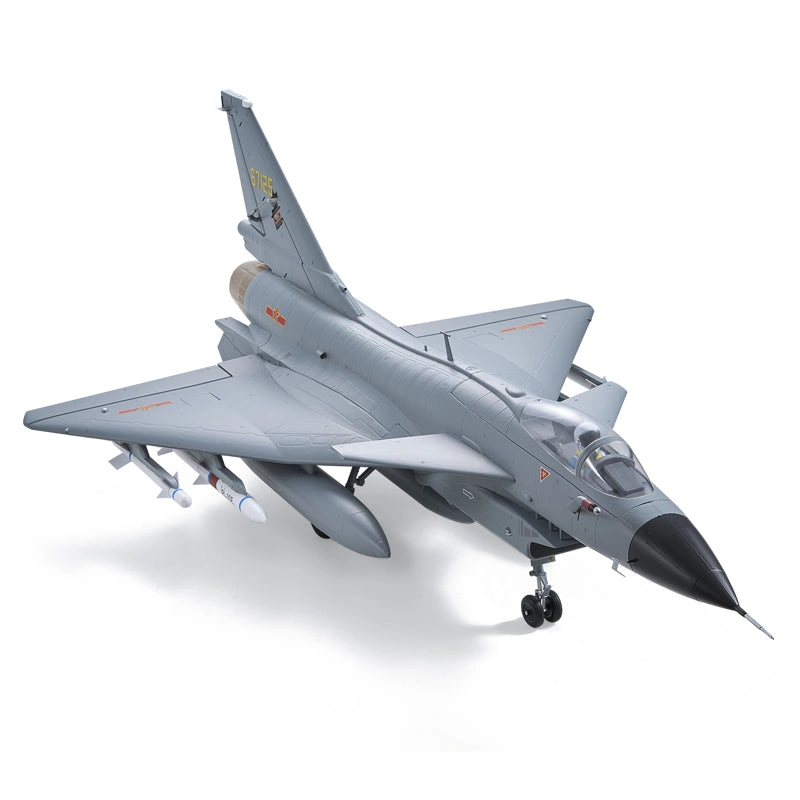

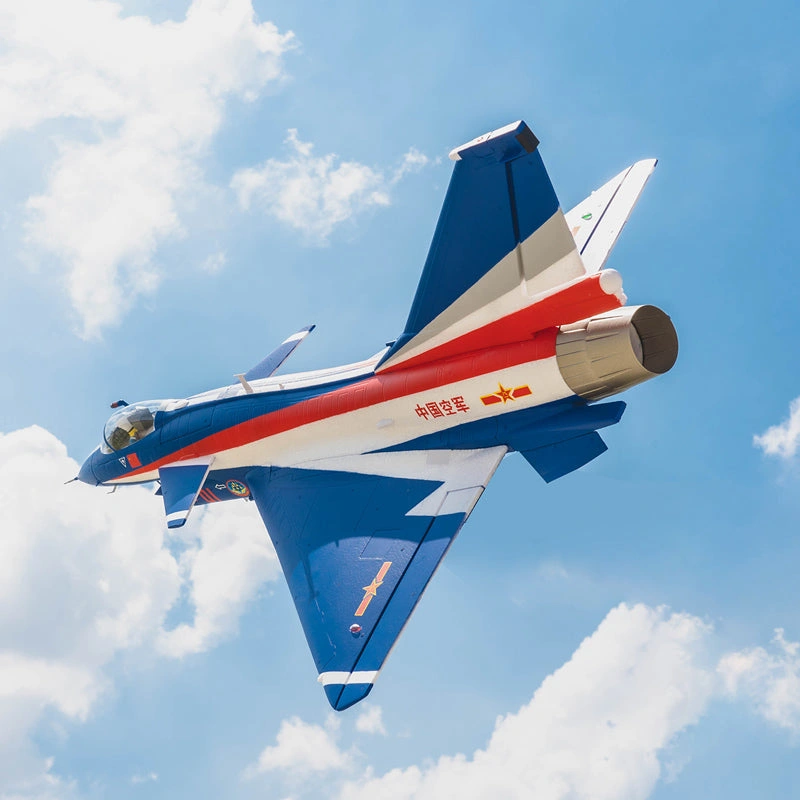

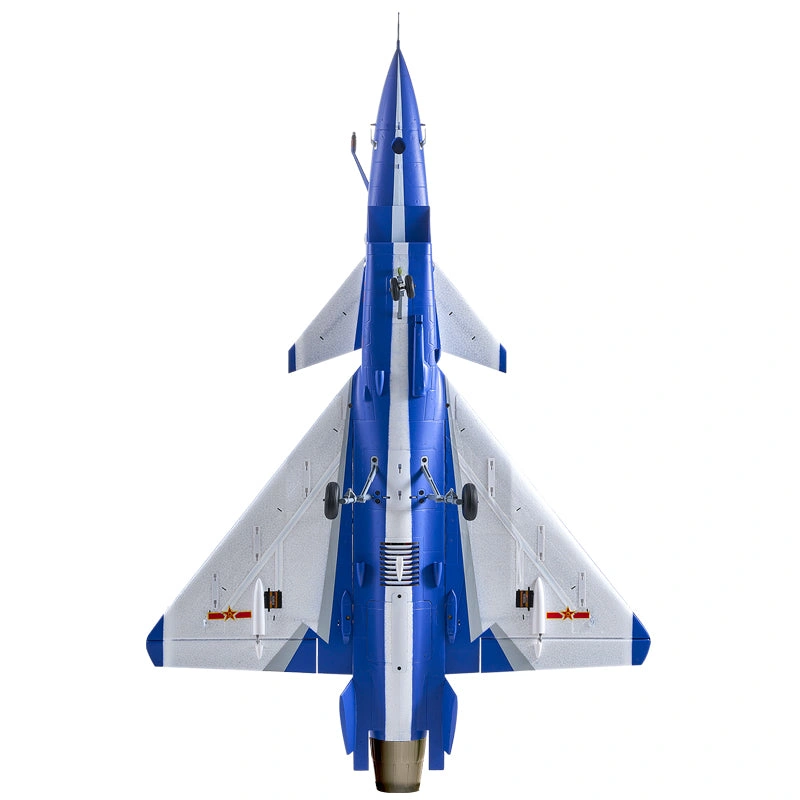

| Model | Air Force Gray | 'August 1st' Aerobatic Team |
| Flying Weight | Around 1100g | Around 1000g |
| Wing Load | 59.5g/dm² ( 0.12oz/in²) | 54g/dm² ( 0.11oz/in²) |
| Wing Area | 18.5dm² (286.5 sq.in) | |
| Wingspan | 690mm /27.2 in | |
| Overall Length | 1110mm /43.7 in | |
| Motor Size | 2840KV3150 | |
| ESC | 40A | |
| Servo | 9gX4pcs | |
| Radio | 6CH Channel | |
| CG (center of gravity) | 80-90mm | |
| Prop Size | 64mm 12blades | |
| Recommended Battery | 14.8V2200mAh-2600mAh 25c with XT60 connector | |
| Aileron | Yes | |
| Rudder | Yes | |
| Flaps | No | |
| Retracts | No | |
| Approx. Flying Duration | 3 minutes | |
| Minimum Age Recommendation | 14+ | |
| Experience Level | Intermediate level | |
| Assembly Time | 10minutes |
